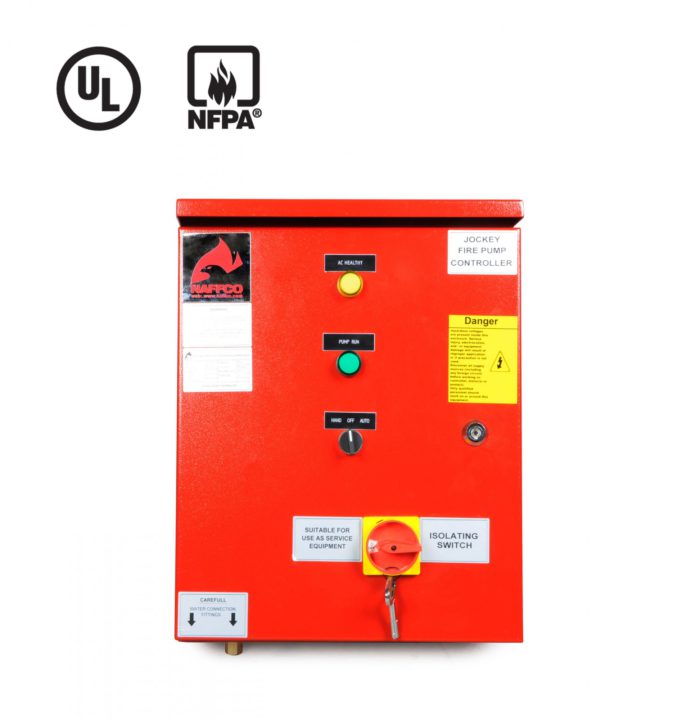

Jockey Pump Controllers

RATINGS

Power Rating	1.5 – 7.5 HP DOL Starter & 10 – 40 HP Star Delta Starter
Voltage	230/380/415/480 V
Frequency	50/60 hz

FEATURES

ENCLOSURE OPTIONS: NEMA 2, NEMA 3, NEMA 4, NEMA 4x, NEMA 12

STANDARD FEATURES

Main disconnect switch with rotary handle, sized for disconnecting motor horsepower and voltage.
Motor Starter (DOL) or Overload Relay (Star-Delta) rated to the motor’s horsepower, with thermal and short circuit protection.
Rated motor connectors.
Circuit breaker for protection of control circuit and motor.
Star—Delta starting timer. (in Model NFY-JSD1 & NFYJSD1-M1)
Power ON/Healthy indicator/free contact.
Pump Run indicator/free contact.
Pump Trip indicator/free contact.
Adjustable pressure switch.
Run Period Timer

MODELS: NFY-JDO1 Direct On-Line & NFY-JSD1 Star-Delta.

Selector switch for Hand-Off-Automatic Operation.

NFY-JDO1-M1 Direct On-Line & NFY-JSD1-M1 Star-Delta

Touch control panel to operate, monitor, and set up the controller.
Automatic and manual selection on the touch panel screen.
Real-time voltage and pressure reading on screen.
Real-time pump running status, alarm details, and time delay on screen.
Password protection.
Screen saver mode.
Up to 4 auxiliary inputs and 3 output ports.
Up to 5 predefined options to select on input auxiliary.
Up to 24 predefined options to select on output auxiliary

Description

DESCRIPTION

S.A Enterprise & Engineering Solution provides Electric Motor Controllers for Jockey Pump are listed by Underwriters Laboratories (UL file number E309408) in accordance with UL508a (Standard for Industrial Control Panel), NFPA70 (National Electric Code) and relevant NEMA standard. Power ratings vary from 1.5 to 40 horsepower, 380 to 415 volts, 50 or 60 Hz.

NAFFCO Electric Motor Controllers for Jockey Pump are listed by Underwriters Laboratories (UL file number E309408) in accordance with UL508a (Standard for Industrial Control Panel), NFPA70 (National Electric Code) and relevant NEMA standard. Power ratings vary from 1.5 to 40 horsepower, 380 to 415 volts, 50 or 60 Hz.
